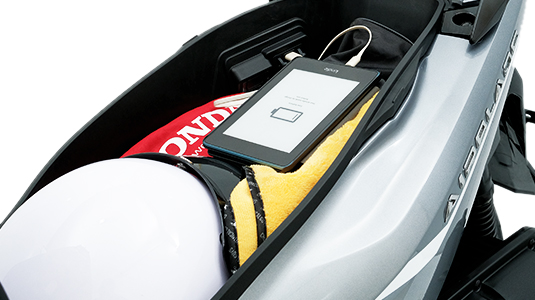

Large 23.2-litre U-BOX / USB charging port

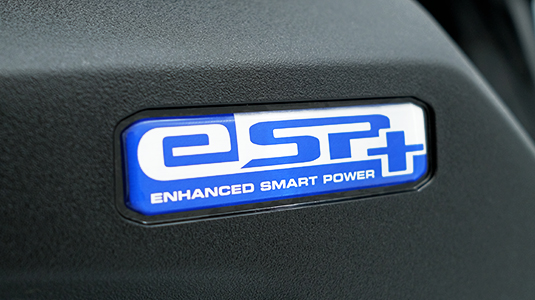

New 4-valve eSP+ engine

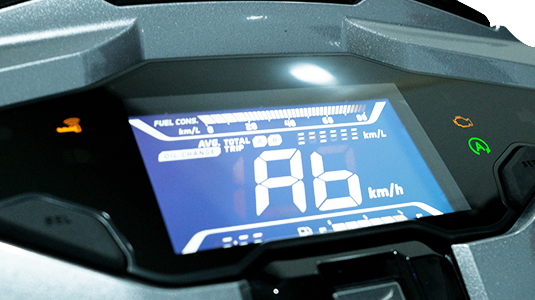

Multifunctional modern Digital LCD meter

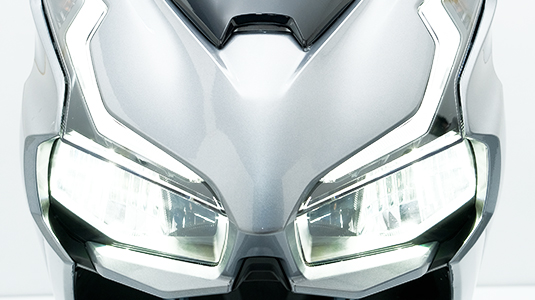

Large LED position light

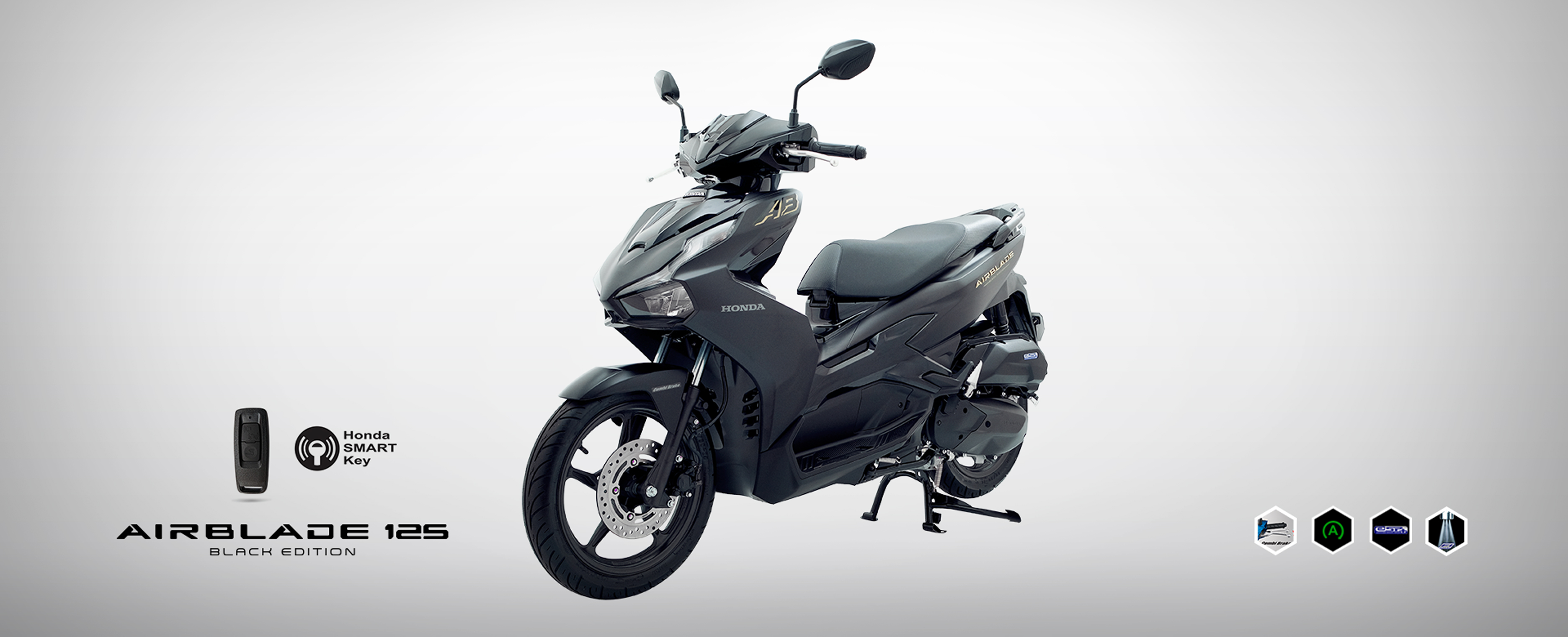

AIR BLADE 125 - BLACK EDITION 2023

The new Air Blade 2023 125cc equipped with eSP+, 4-valve engine, designed with 4-stroke PGM-FI, single-cylinder, liquid-cooled, meeting Euro 3 emission standards with the small design. Compact, integrated with many of the most advanced technologies such as Honda SMART Key, CBS braking system, idling stop system, and USB charger. The eSP+ 125cc engine takes 6.2 seconds to accelerate from 0-100m at a speed of 40km/h. The new generation 4-valve system increases the engine's power, and the enlarged valve diameter helps to increase the intake efficiency of the fuel mixture and air, along with the exhaust efficiency of the gas. At the same time, shortening the valve stroke also helps to reduce frictional resistance during operation. In addition, the engine is also equipped with a hydraulic cam chain booster system. The stable tension from the hydraulic booster system helps the cam chain always to maintain the best operating state and helps reduce friction, noise and vibration when the engine has to operate at high intensity, contributing to improved fuel efficiency.


specifications


Model
Model Number
ACA125CBFP-2AD
Model Name
AIR BLADE 125 - BLACK EDITION (2023)
Model Year
2023

engine
Bore × Stroke (mm)
53.500 x 55.502
Carburation
PGM-FI electronic fuel injection
Compression Ratio
11.5:1
Engine Displacement (cm³)
124.77
Engine Type
eSP+, 4-stroke, single-cylinder, liquid-cooled
Starter
Electric

wheels
Brakes Front
Hydraulic disc (CBS)
Brakes Rear
Drum
Suspension Front
Telescopic fork
Suspension Rear
Swingarm
Tyres Front
80/90-14M/C 40P - Tubeless
Tyres Rear
90/90-14M/C 52P - Tubeless
Wheels Front
Cast Wheel
Wheels Rear
Cast Wheel

dimentions and weights
Caster Angle
26° 28'
Dimensions (L×W×H) (mm)
1,887 x 687 x 1,092
Frame type
Underbone
Fuel Tank Capacity (Litres)
4.4
Ground Clearance (mm)
141
Net Weight (kg)
112
Seat Height (mm)
775
Trail (mm)
84
Wheelbase (mm)
1,286

transmission
Clutch
Automatic, centrifugal, dry type
Final Drive
V-Belt
Transmission Type
CVT
