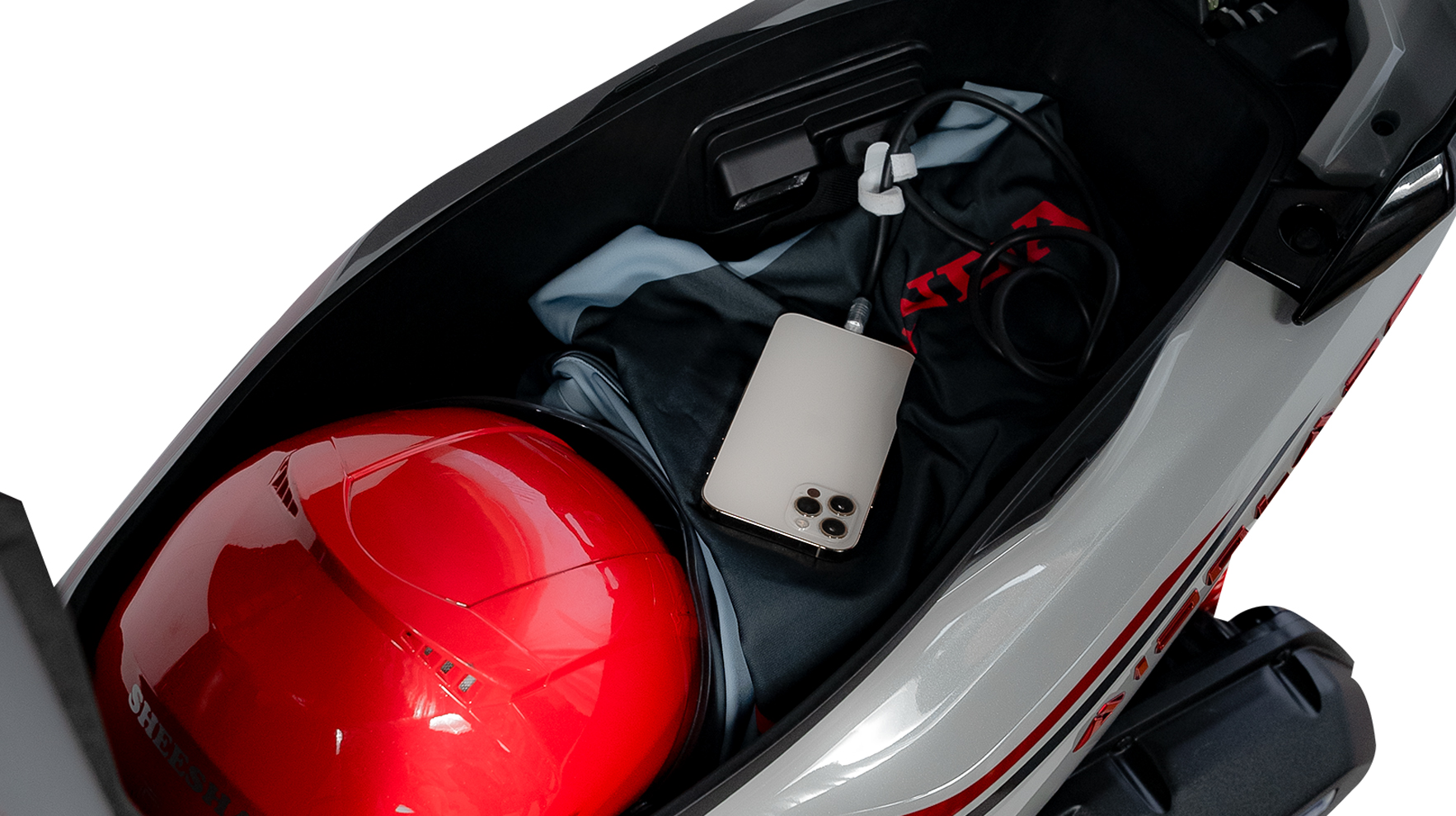

LARGE 23.2-LITRE U-BOX / USB CHARGING PORT

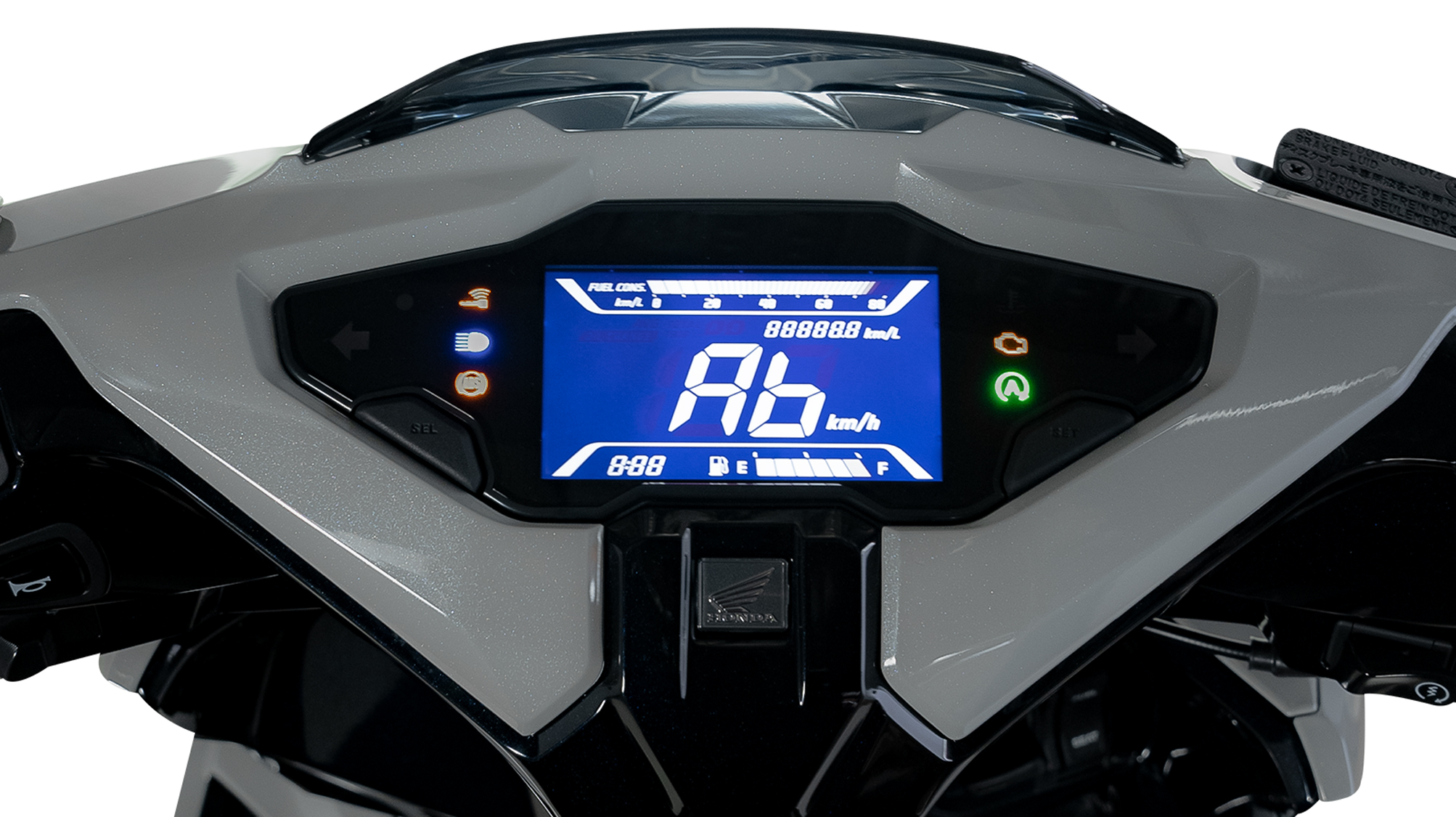

Multifunctional Digital LCD meter

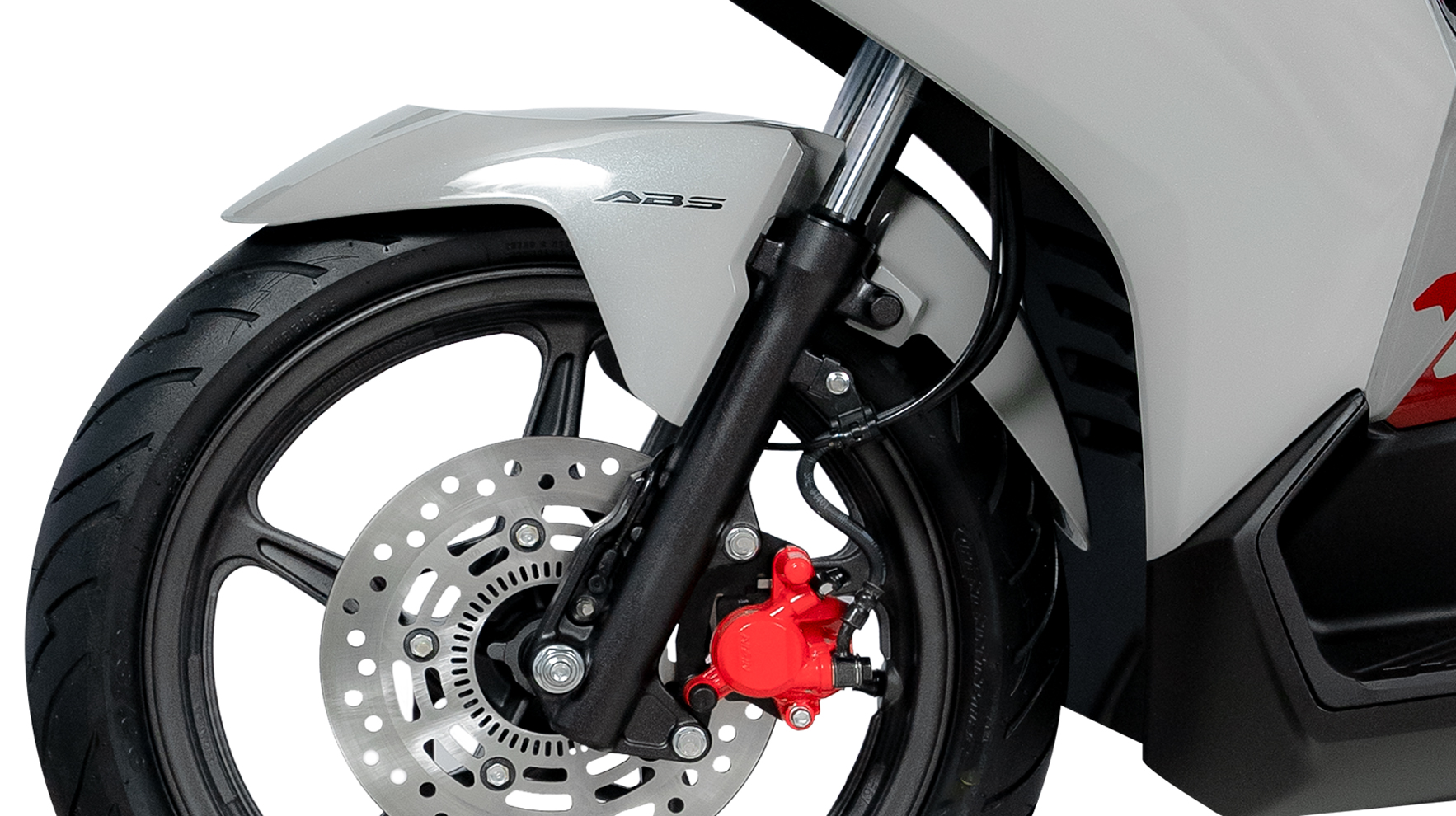

FR HYDRAULIC DISK BRAKE EQUIPPED WITH ABS

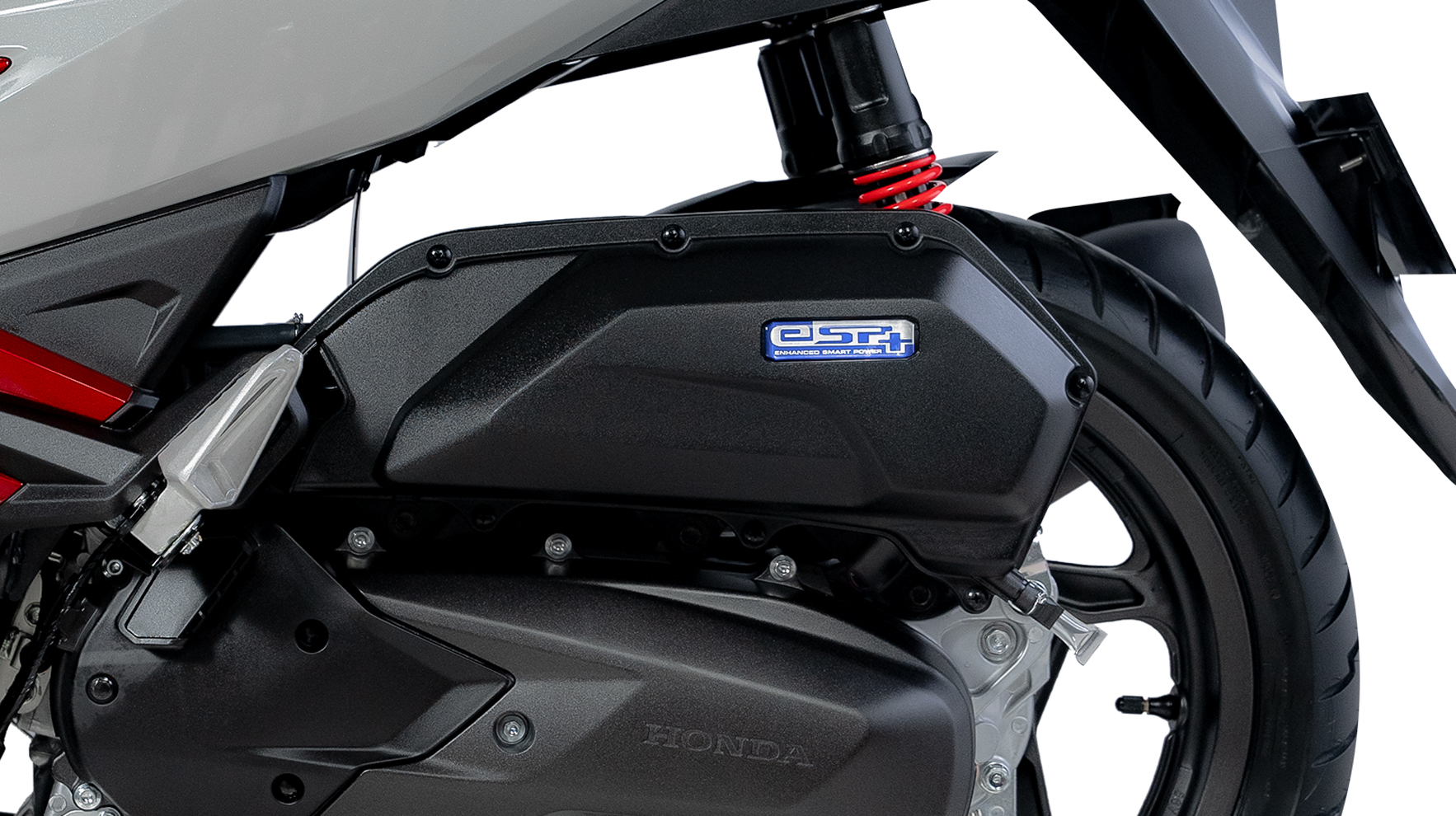

eSP+ Engine

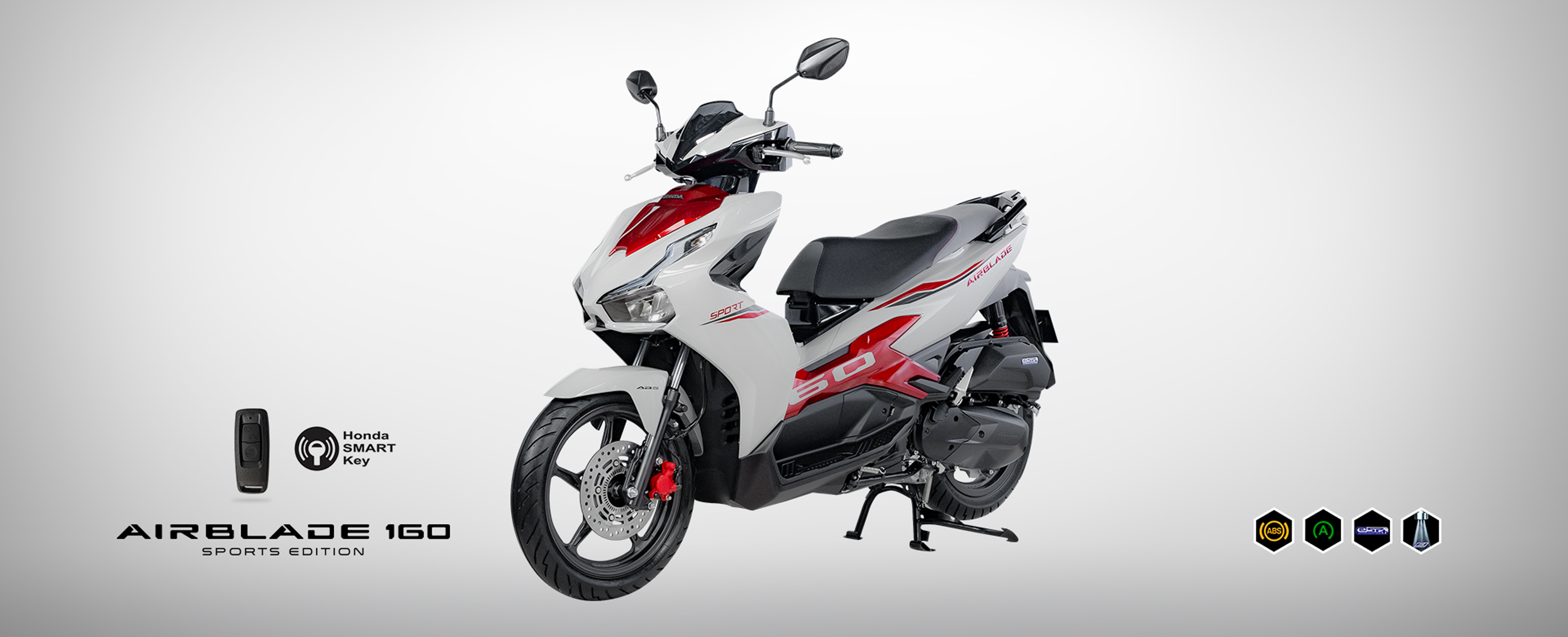

AIR BLADE 160 - SPORTS EDITION

Air Blade is equipped with an eSP+ 4-valve engine system, which increases power, operates smoothly, saves fuel and is environmentally friendly. Compact, integrated with many of the most advanced technologies such as Honda SMART Key, ABS braking system, idling stop system, and USB charger. The new generation 4-valve system increases the engine's power, and the enlarged valve diameter helps to increase the intake efficiency of the fuel mixture and air, along with the exhaust efficiency of the gas. At the same time, shortening the valve stroke also helps to reduce frictional resistance during operation.


specifications


Model
Model Number
ACA160CAFS-4AD
Model Name
AIR BLADE 160 - SPORTS EDITION 2025
Model Year
2025

engine
Bore × Stroke (mm)
60.000 x 55.502
Carburation
PGM-FI electronic fuel injection
Compression Ratio
12.0:1
Engine Displacement (cm³)
156.93
Engine Type
eSP+, 4-stroke, single-cylinder, liquid-cooled
Starter
Electric

wheels
Brakes Front
Hydraulic disc (ABS)
Brakes Rear
Drum
Suspension Front
Telescopic fork
Suspension Rear
Swingarm
Tyres Front
90/80-14M/C 43P - Tubeless
Tyres Rear
100/80-14M/C 48P - Tubeless
Wheels Front
Cast wheel
Wheels Rear
Cast wheel

dimentions and weights
Caster Angle
26º 30’
Dimensions (L×W×H) (mm)
1,890 x 687 x 1,116
Frame type
Underbone
Fuel Tank Capacity (Litres)
4.4
Ground Clearance (mm)
142
Net Weight (kg)
114
Seat Height (mm)
775
Trail (mm)
84
Wheelbase (mm)
1,286

transmission
Clutch
Automatic, centrifugal, dry type
Final Drive
V-Belt
Transmission Type
V.Matic
