colors
360°

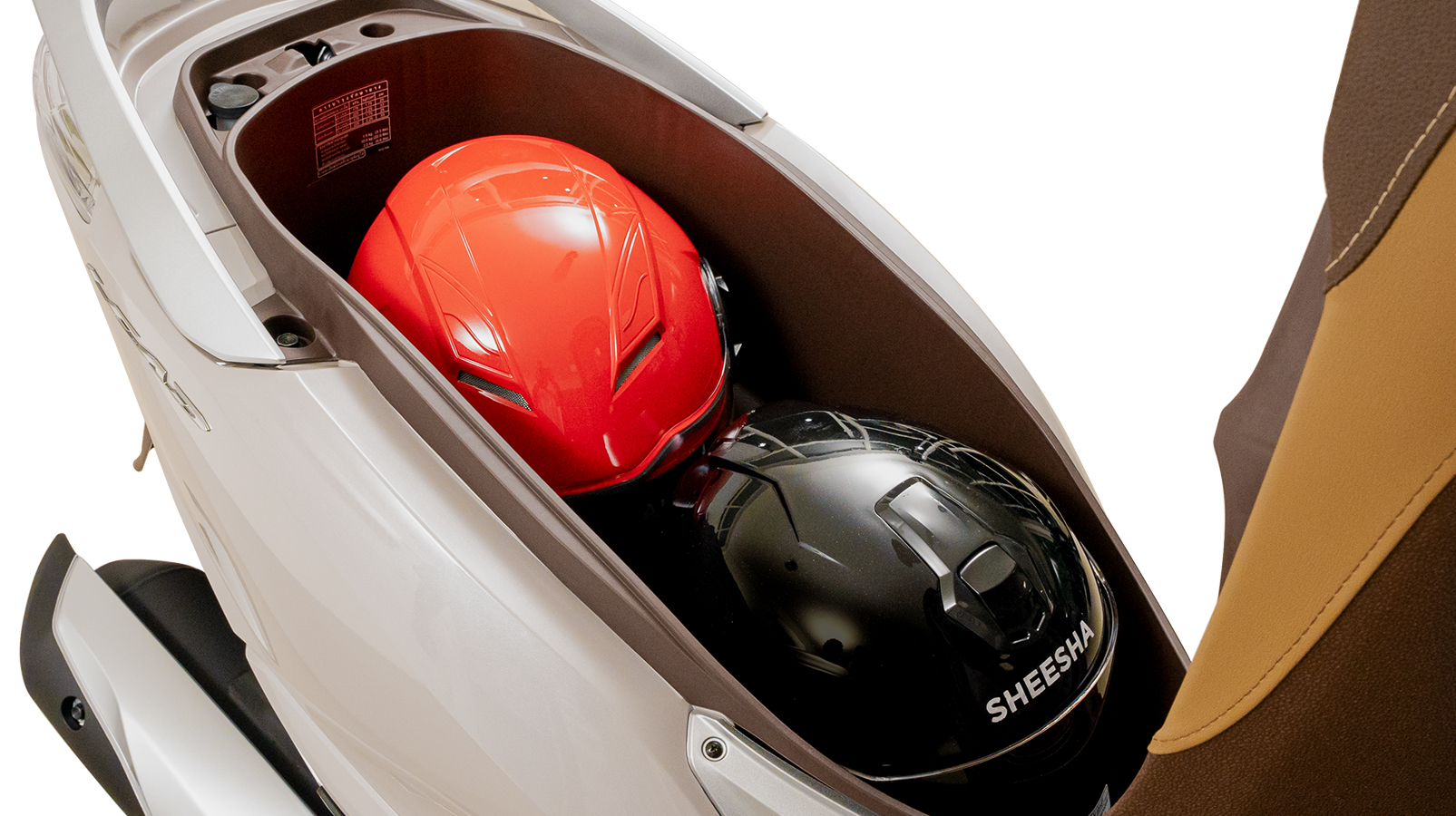

37 litre storage compartment

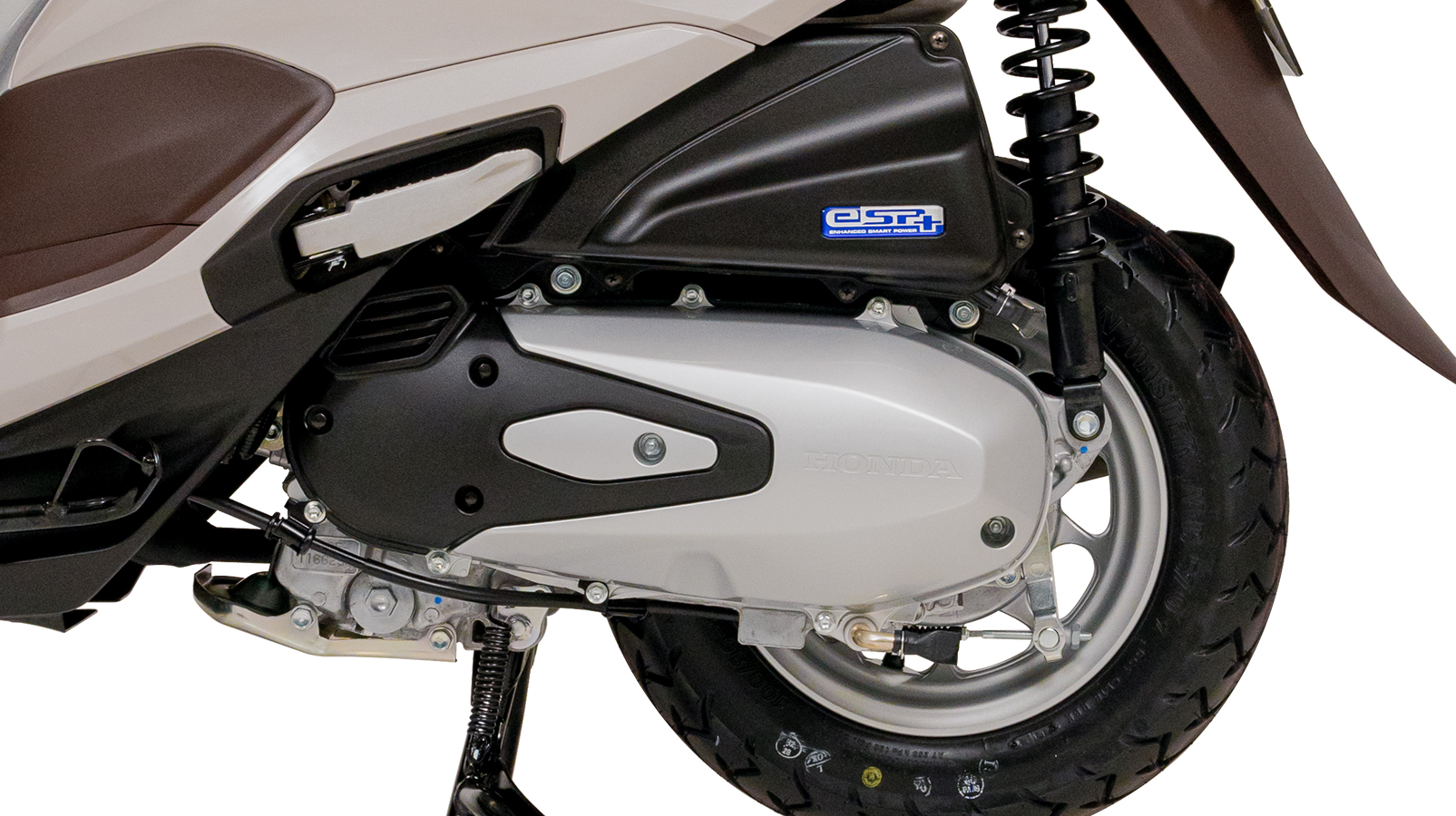

eSP+ engine

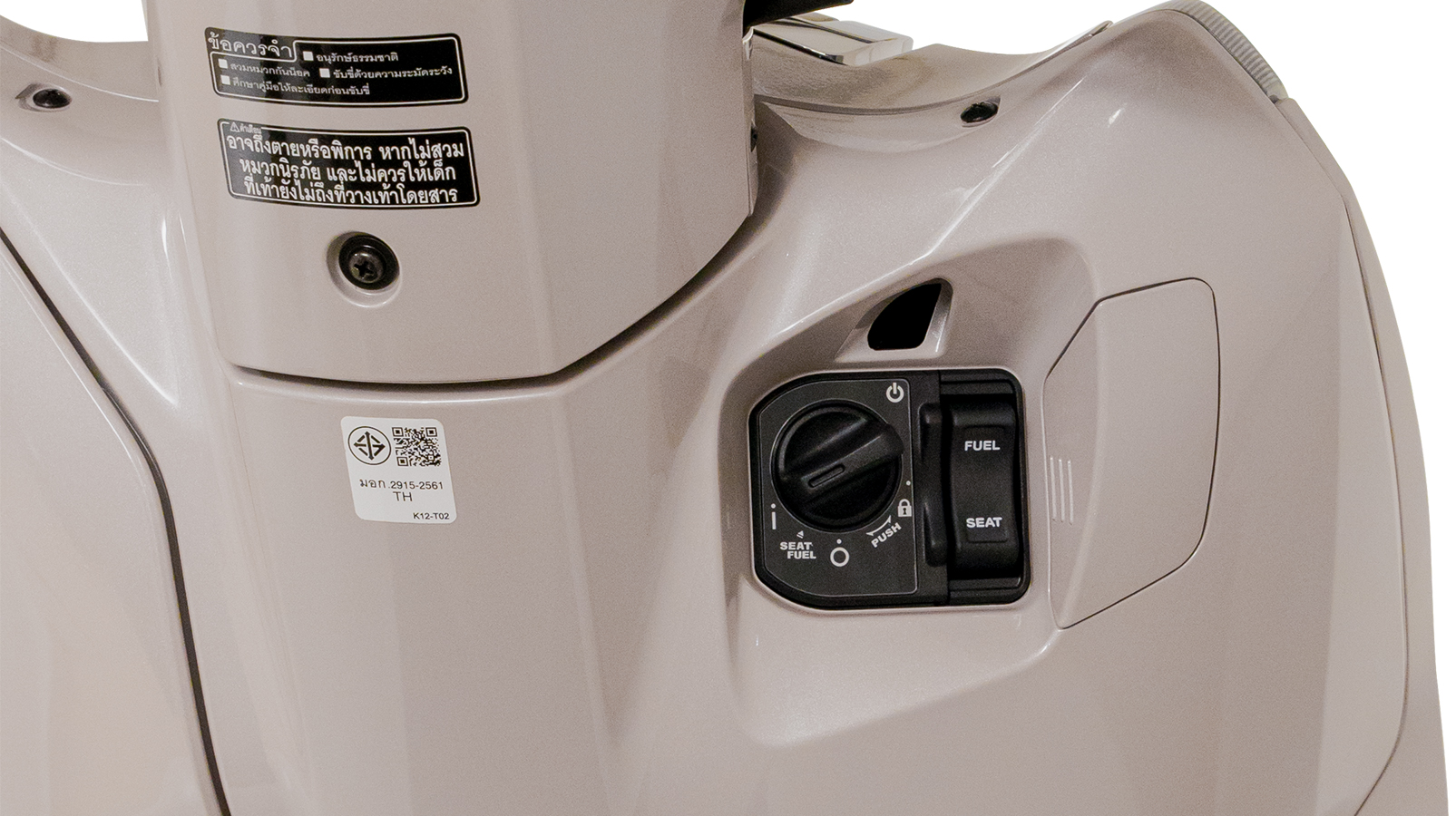

Honda SMART Key

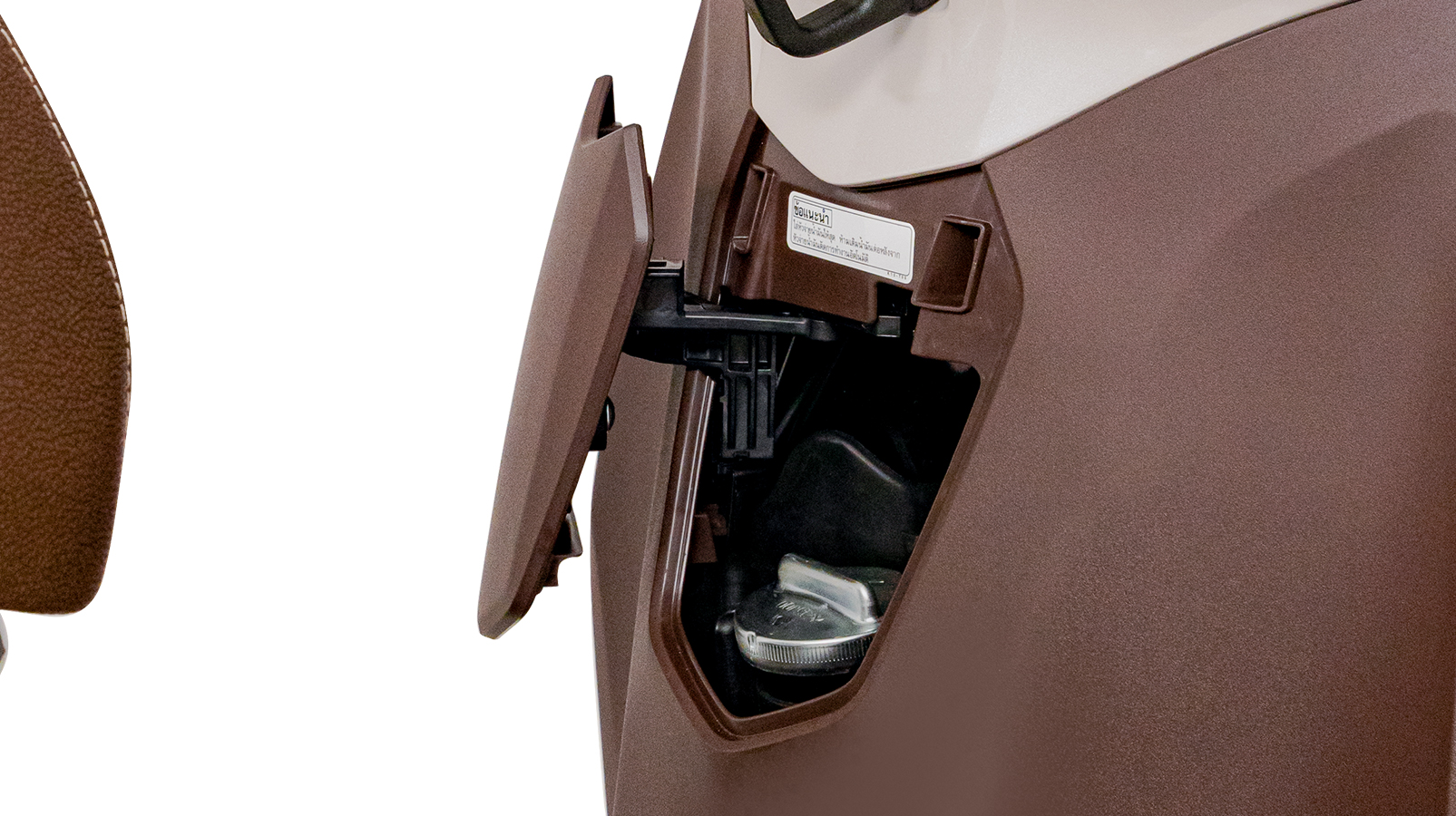

Easy Fueling - Front Fuel Tank

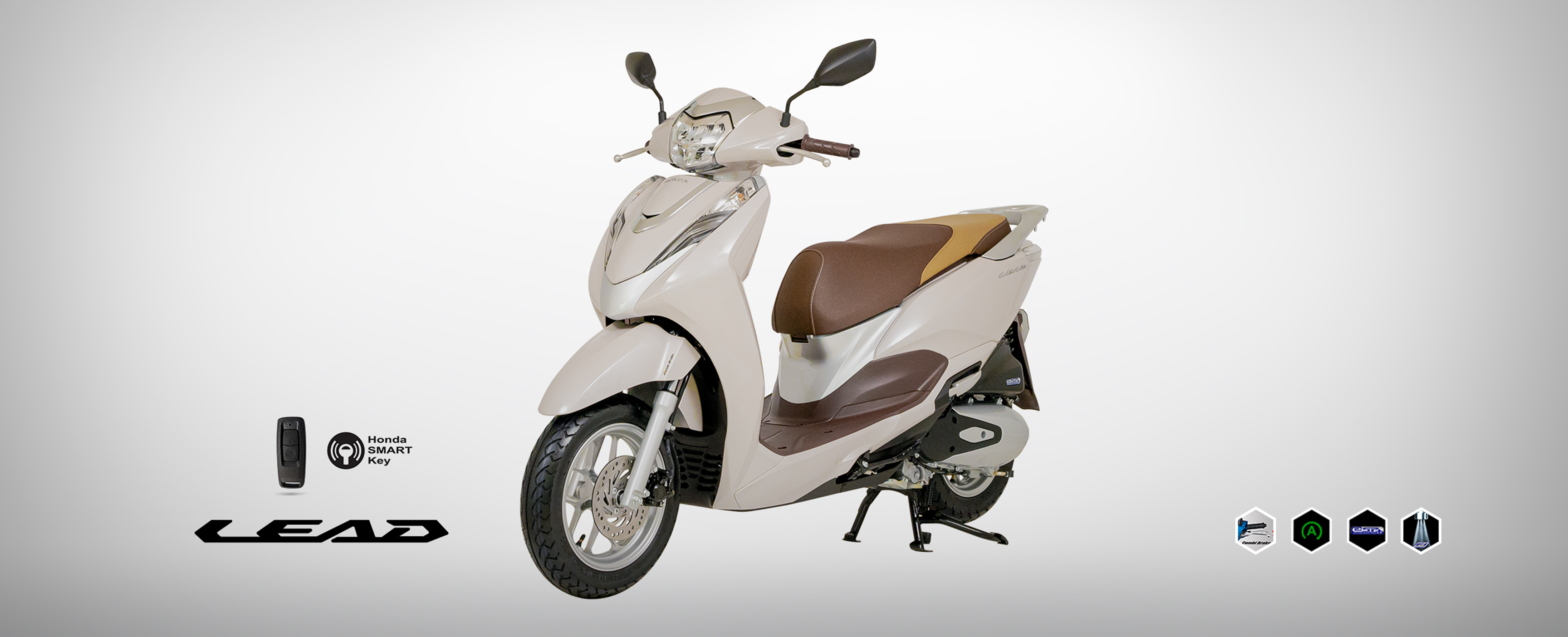

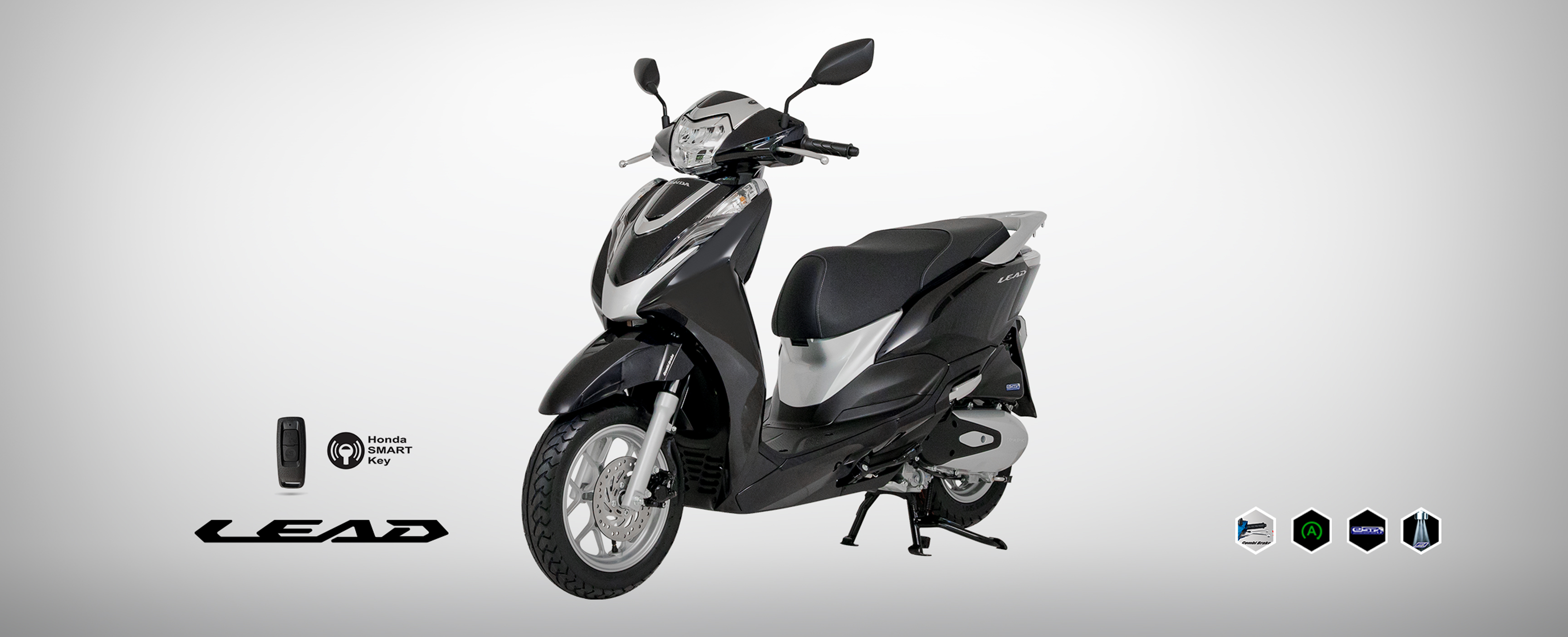

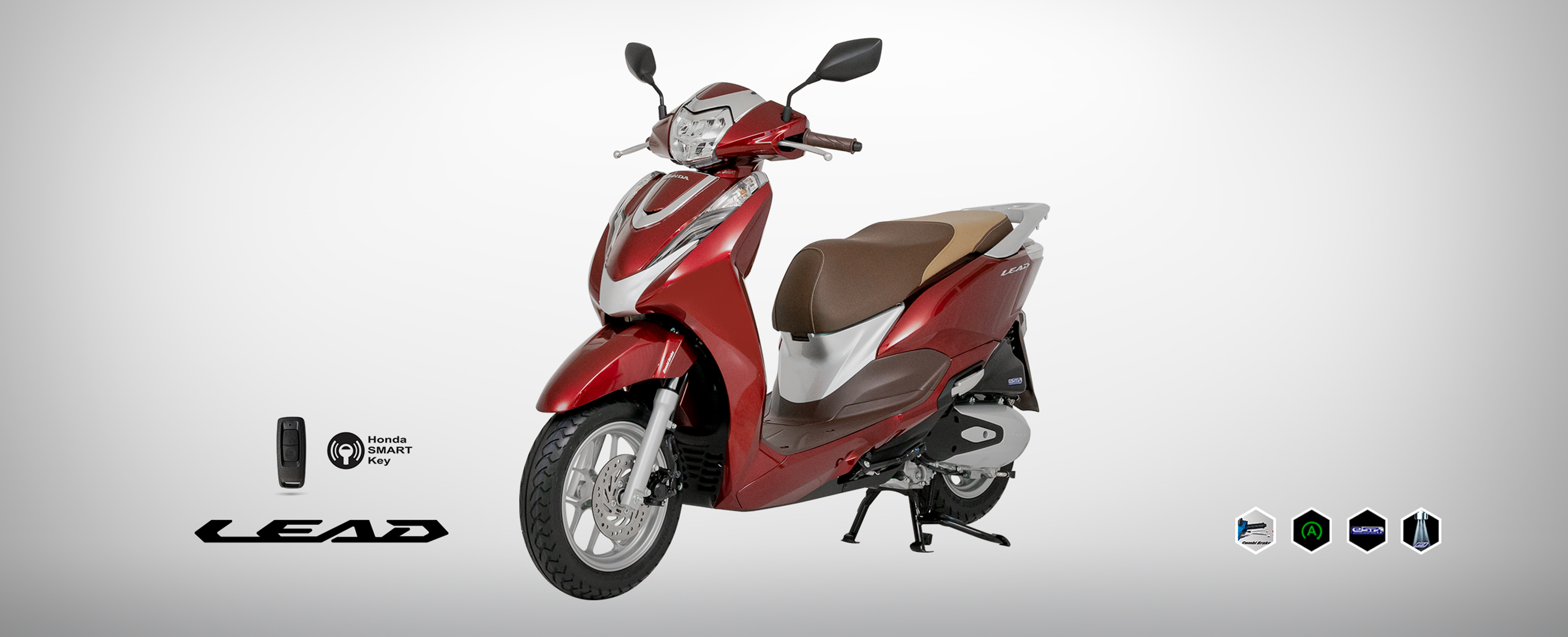

Lead 125

Lead 125 has an elegant modern style with high-quality chrome-plated details that complement the primary colours. Besides the looks, Lead 125 is designed for user convenience, notably with a convenient charging port in the front storage compartment, a 37-litre under-seat storage compartment, a front hook, easy fueling, Honda Smart Key and a large footrest area. It has an outstanding eSP+ engine, which increases power output, reduces fuel consumption, lowers emissions, and contributes to the environment with excellent performance.


specifications


Model
Model Number
NHX125N-TH
Model Name
Lead 125
Model Year
2022

engine
Bore × Stroke (mm)
53.500 x 55.502
Carburation
PGM-FI electronic fuel injection
Compression Ratio
11.5:1
Engine Displacement (cm³)
124.77
Engine Type
eSP+, 4-stroke, single-cylinder, liquid-cooled
Starter
Electric

wheels
Brakes Front
Hydraulic disc (CBS)
Brakes Rear
Drum
Suspension Front
Telescopic fork
Suspension Rear
Swingarm
Tyres Front
90/90-12 44J - Tubeless
Tyres Rear
100/90-10 56J - Tubeless
Wheels Front
Cast Wheel
Wheels Rear
Cast Wheel

dimentions and weights
Caster Angle
26° 30’
Dimensions (L×W×H) (mm)
1,844 x 680 x 1,130
Frame type
Underbone
Fuel Tank Capacity (Litres)
6.0
Ground Clearance (mm)
140
Net Weight (kg)
114
Seat Height (mm)
760
Trail (mm)
75
Wheelbase (mm)
1,273

transmission
Clutch
Automatic, centrifugal, dry type
Final Drive
V-Belt
Transmission Type
V-Matic
