colors
360°

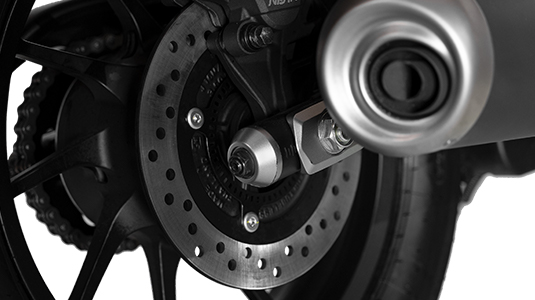

ANTI-LOCK BRAKING SYSTEM

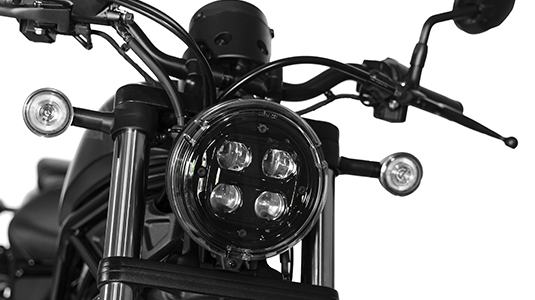

LED LIGHTS

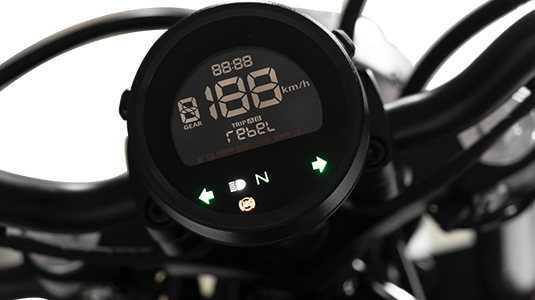

CLASSIC STYLE, MULTIFUNCTIONAL LCD METER

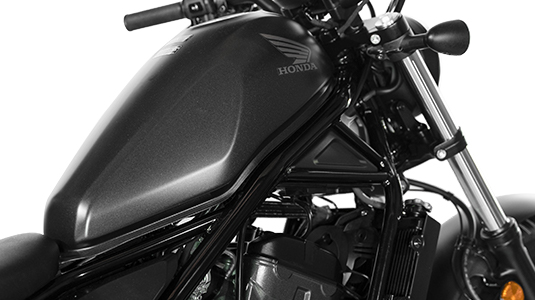

STYLISH 11.2 LITRES FUEL TANK

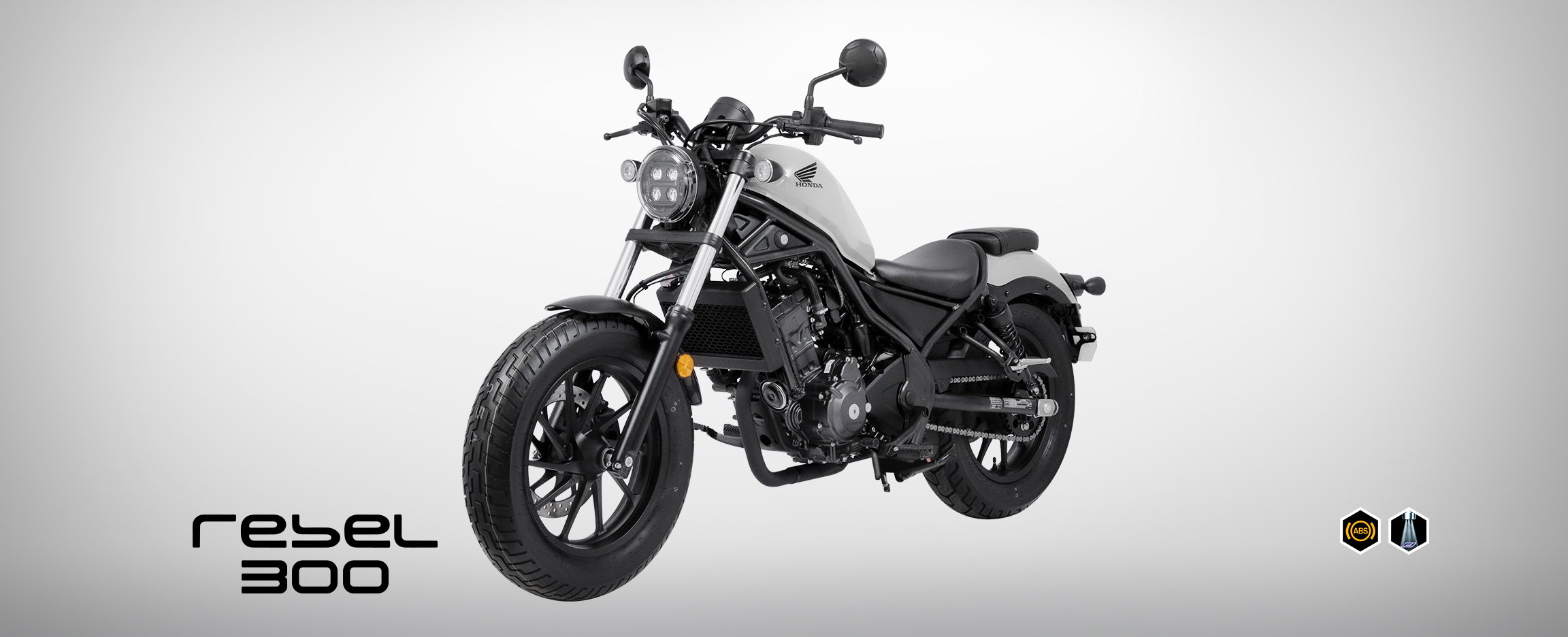

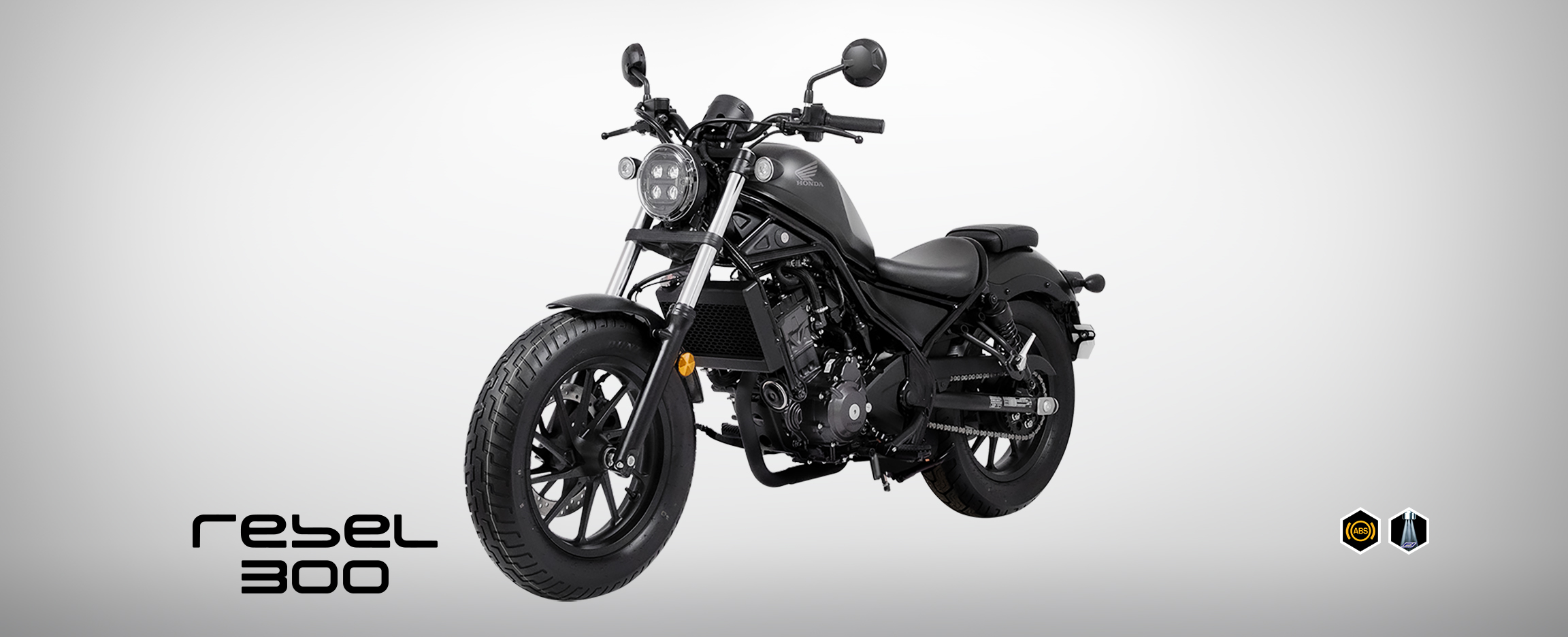

Rebel 300

Rebel has one of the lowest seat height for riding comfort and superior handling. It has a powerful 300cc, PGM-FI, DOHC, liquid-cooled 4-stroke engine. The bike features an 11.2-litre fuel tank, slipper/assist clutch, LED lights, and ABS brakes.


specifications


Model
Model Number
CMX300AP-KTH
Model Name
REBEL 300
Model Year
2022

engine
Bore × Stroke (mm)
76.0 x 63.1
Carburation
PGM-FI electronic fuel injection
Compression Ratio
10.7:1
Engine Displacement (cm³)
286
Engine Type
4-stroke, DOHC, Single Cylinder, Liquid cooled
Starter
Electric

wheels
Brakes Front
ABS Hydraulic disc brake
Brakes Rear
ABS Hydraulic disc brake
Suspension Front
Telescopic fork
Suspension Rear
Twin shock
Tyres Front
130 / 90-16M / C 67H (Tubeless)
Tyres Rear
150 / 80-16M / C 71H (Tubeless)
Wheels Front
Cast Wheel
Wheels Rear
Cast Wheel

dimentions and weights
Caster Angle
28° 0’
Dimensions (L×W×H) (mm)
2,206 x 822 x 1,093
Frame type
Diamond
Fuel Tank Capacity (Litres)
11.2
Ground Clearance (mm)
149
Net Weight (kg)
170
Seat Height (mm)
690
Trail (mm)
110
Wheelbase (mm)
1490

transmission
Clutch
Manual Clutch Wet Multiplate Type
Final Drive
Chain
Transmission Type
6-speed
